Mixtus 6.8 DC
Mixtus 7.9 DC

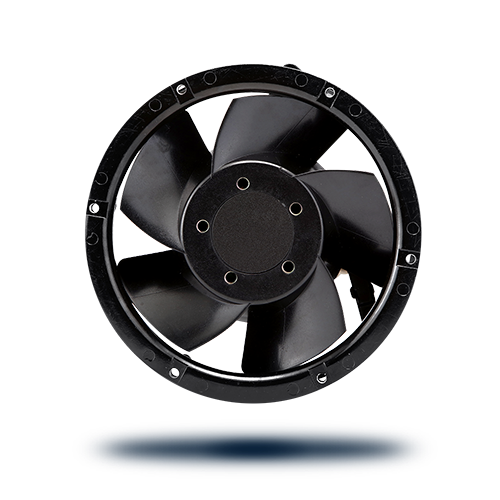

Mixtus 6.8 DC
Model
Number
Part
Number
Termination
Normal
VoltageVDC
Operating VoltageVDC
Rated
CurrentAmps
Rated
Input PowerWatts
SpeedRPM
Rated
Air Flow
CFM | m/hr
Rated
Air Pressure
inch - H  O | Pascal
NoisedB(A)
Compare   Select up
MFXE24Z
17000296A
2 Leadwires
24
16 - 32
3.10
74.4
5400
394669.4
2.37 589
72.0
MFXE48Z
17000297A
2 Leadwires
48
36 - 60
3.00
144.0
5400
394669.4
2.37 589
72.0
MFXE24Z3E2X-E2
17001592A
4 Leadwires
24
16 - 32
3.10
74.4
5400
394669.4
2.37 589
72.0
MFXE24Z3D-E2
17001898A
3 Leadwires
24
16 - 32
3.10
74.4
5400
394669.4
2.37 589
72.0
MFXE48Z6D3
19044012A
Harness
48
24 - 72
1.55
74.4
5400
394669.4
2.37 589
72.0
MFXE24Z6D3-E2
19044017A
Harness
24
16 - 32
3.10
74.4
5400
394669.4
2.37 589
72.0
MFXE48Z3D3-E2
19044018A
Harness
48
24 - 72
1.55
74.4
5400
394669.4
2.37 589
72.0
MFXE24Z3D3-E2
19044019A
Harness
24
16 - 32
3.10
74.4
5400
394669.4
2.37 589
72.0
Designed with optional feature
Speed control:Linear voltage,PWM,Thermal sensor
Feedback:Tach,FPS
Environmental Protection:E2(IP55)
See All Series
Compare Now

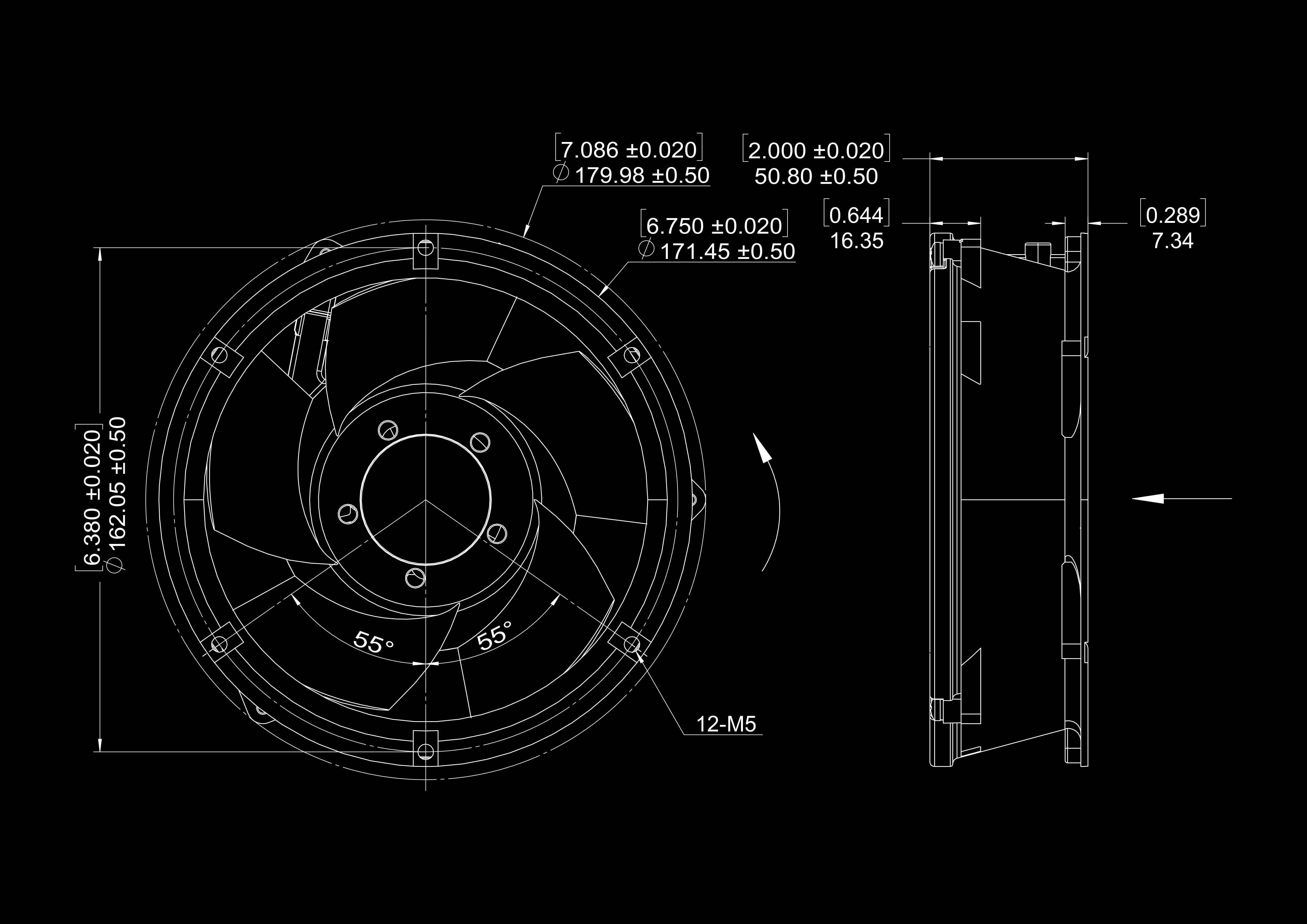

MECHANICAL DRAWING

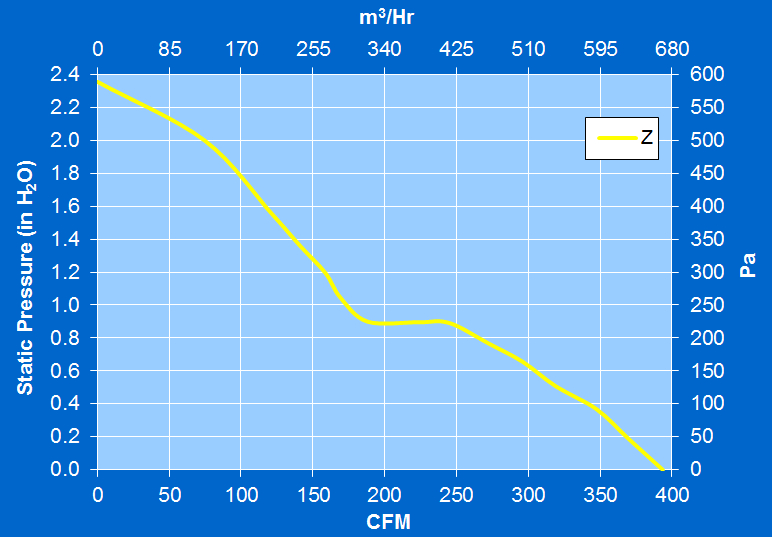

PQ CURVE
