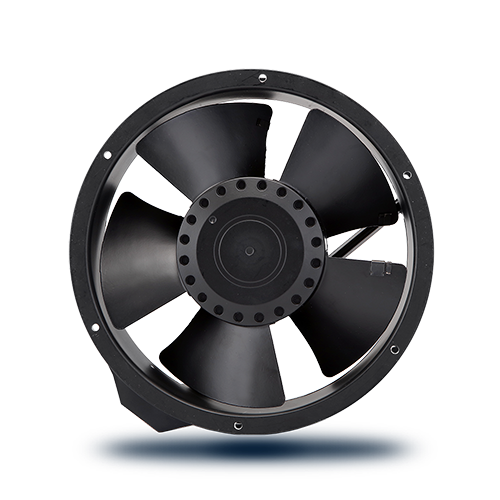

CR2206 DC
Model
Number
Part
Number
Termination
Normal
VoltageVDC
Operating VoltageVDC
Rated
CurrentAmps
Rated
Input PowerWatts
SpeedRPM
Rated
Air Flow
CFM | m/hr
Rated
Air Pressure
inch - H  O | Pascal
NoisedB(A)
Compare   Select up
CR2206DC24V
17002079A
2 Leadwires
24
21.6-26.4
3.00
72
4000
625.71063.7
1.29322
72
CR2206DC48V
17002080A
2 Leadwires
48
43.2-52.8
1.70
81.6
4000
625.71063.7
1.29322
72
Designed with optional feature tach,pwm
See All Series
Compare Now

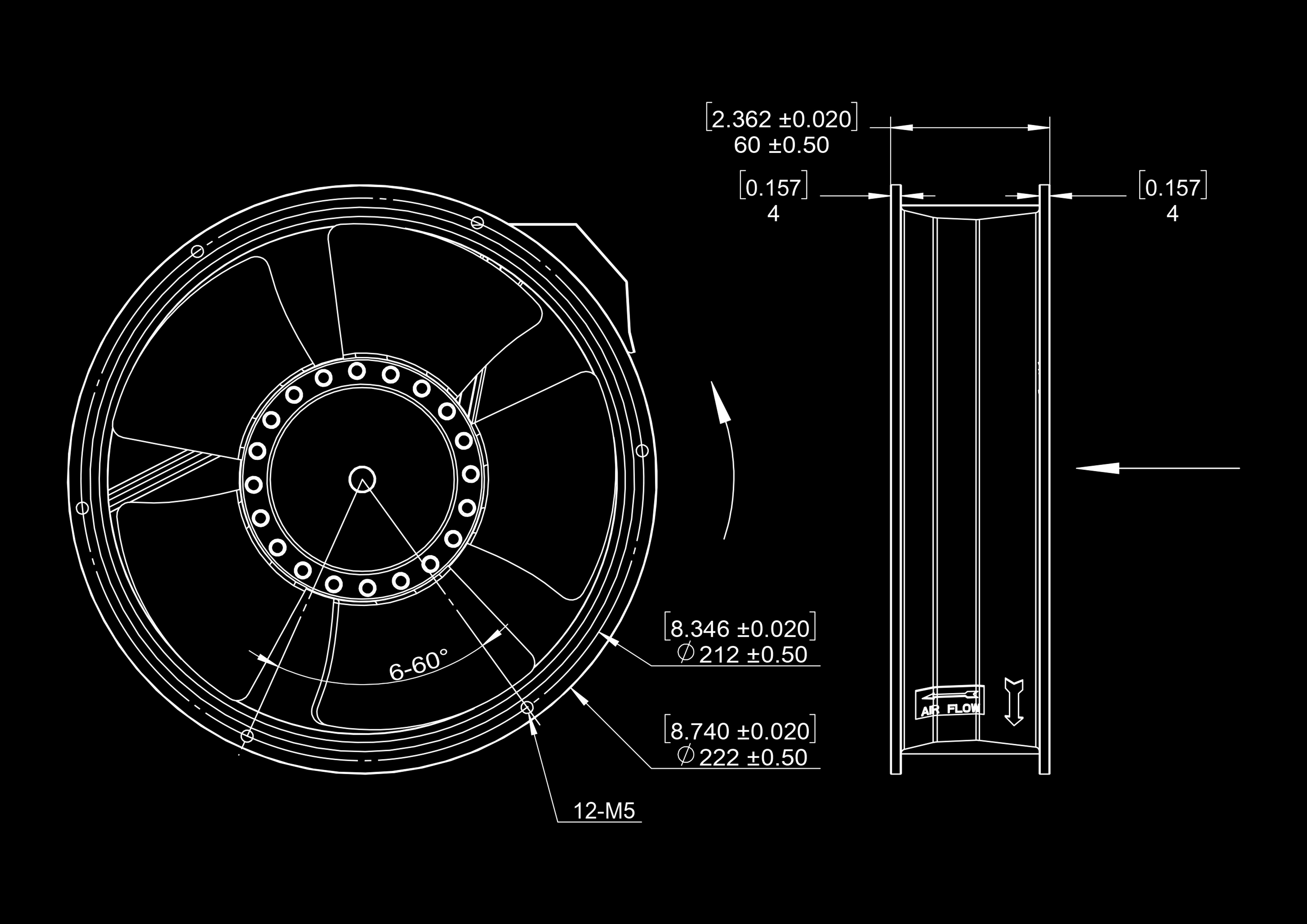

MECHANICAL DRAWING

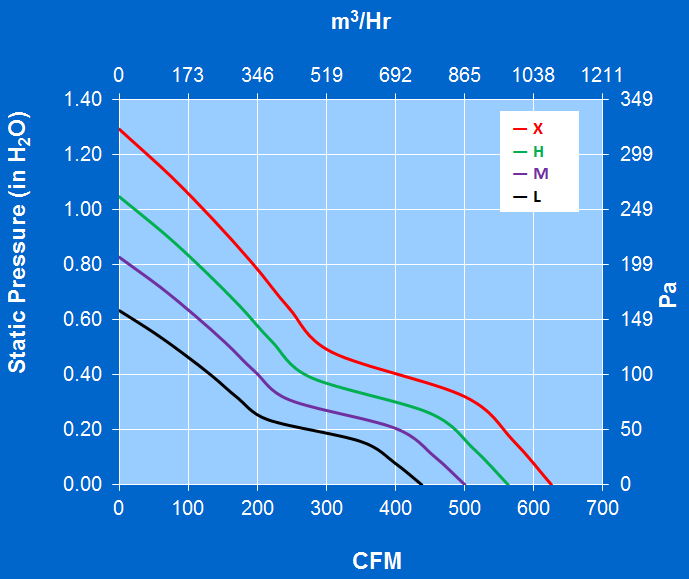

PQ CURVE
