CR1225 DC

Model
Number

Part
Number

Termination

Normal
VoltageVDC

Operating VoltageVDC

Rated
CurrentAmps

Rated
Input PowerWatts

SpeedRPM

Rated
Air Flow

CFM | m/hr

Rated
Air Pressure

inch - H O | Pascal

NoisedB(A)

Compare Select up

17002063A

2 Leadwires

12

10.8-13.2

0.28

3.36

3000

95.6162.5

0.2358

51

17002064A

2 Leadwires

12

10.8-13.2

0.30

3.60

4000

127.4216.6

0.41102

58

17002067A

2 Leadwires

24

21.6-26.4

0.14

3.36

3000

95.6162.5

0.2358

51

17002068A

2 Leadwires

24

21.6-26.4

0.18

4.32

4000

127.4216.6

0.41102

58

17002071A

2 Leadwires

48

43.2-52.8

0.08

3.84

3000

95.6162.5

0.2358

51

17002072A

2 Leadwires

48

43.2-52.8

0.22

10.56

4000

127.4216.6

0.41102

58

17002156A

3 Leadwires

12

10.8 – 13.2

0.28

3.36

3000

95.6162.5

0.2358

51

17002157A

3 Leadwires

24

21.6 – 26.4

0.14

3.36

3000

95.6162.5

0.2358

51

Designed with optional feature tach,pwm

Compare Now

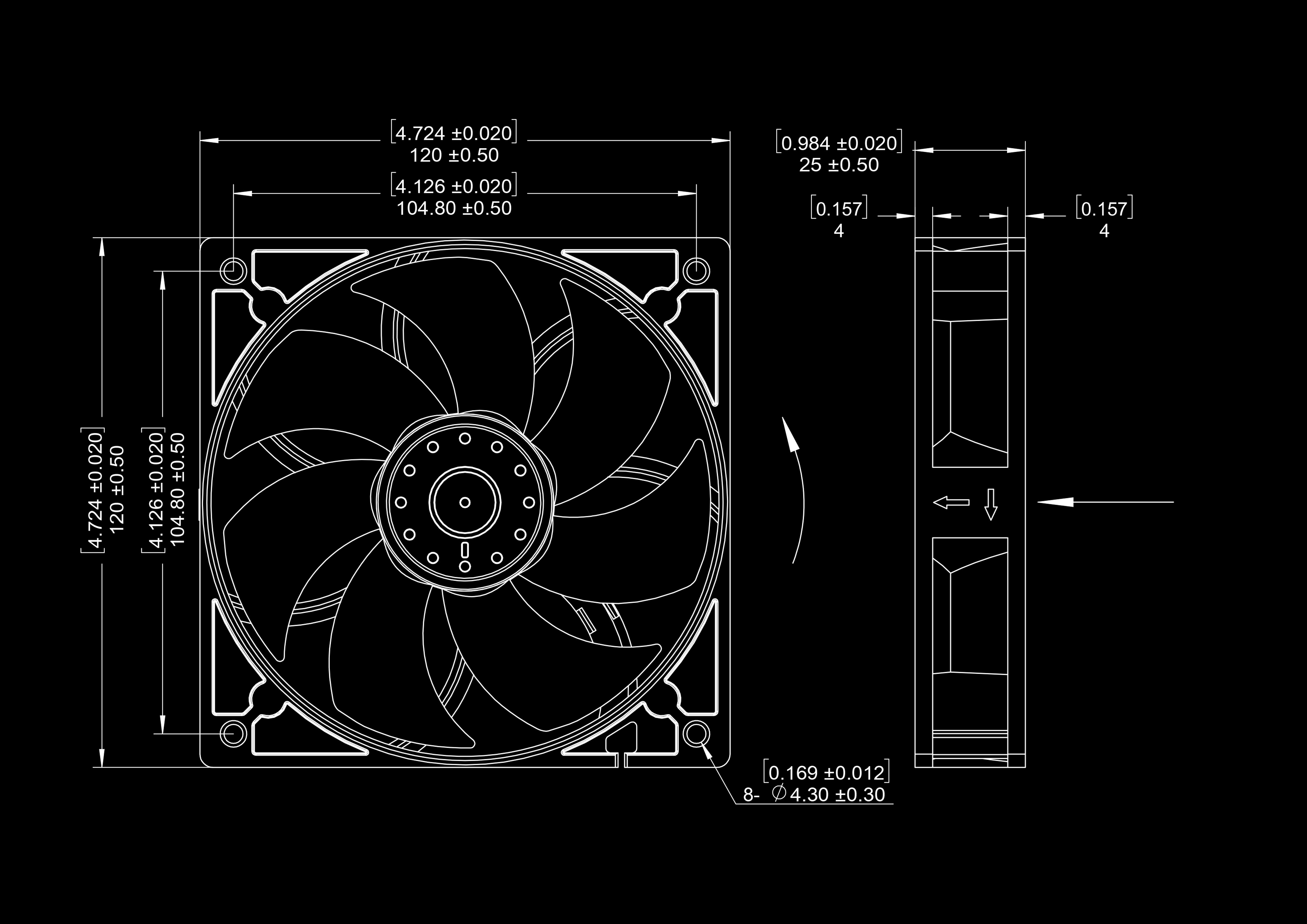

MECHANICAL DRAWING

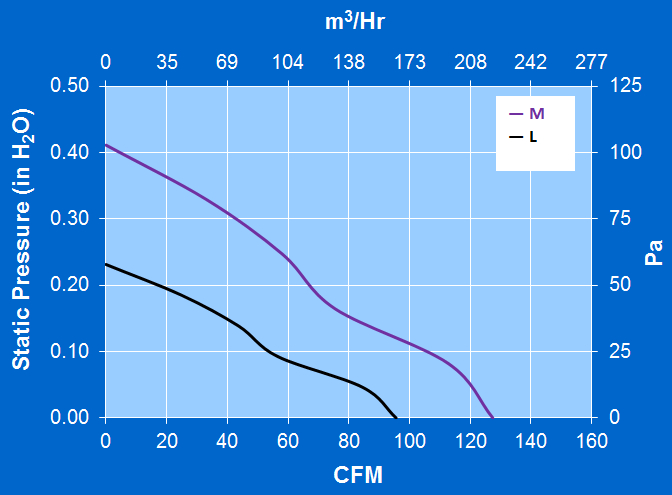

PQ CURVE
