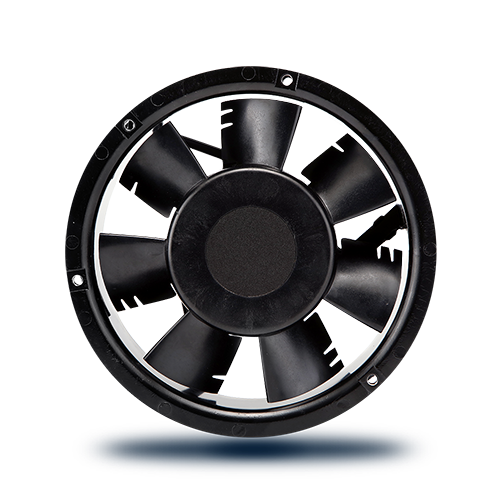

Patriot DC
Model
Number
Part
Number
Termination
Normal
VoltageVDC
Operating VoltageVDC
Rated
CurrentAmps
Rated
Input PowerWatts
SpeedRPM
Rated
Air Flow
CFM | m/hr
Rated
Air Pressure
inch - H  O | Pascal
NoisedB(A)
Compare   Select up
PQD48B6D3-E2
16002542A
Harness
48
36-48
0.45
22.0
3600
240415.2
0.82 204
52.0
PQ24K4
17000015A
2 Leadwires
24
12 - 28
1.80
43.2
4200
285484.2
1.08 269
58.9
PQ48K4
17000016A
2 Leadwires
48
24 - 56
0.90
43.2
4200
285484.2
1.08 269
58.9
PQD24Z3
17000017A
2 Leadwires
24
16 - 32
1.30
31.2
4500
305518.2
1.37 341
60.4
PQD48Z3
17000018A
2 Leadwires
48
28 - 72
0.67
32.2
4500
305518.2
1.37 341
60.4
PQ48R0X-E2
17000042A
Harness
48
24-56
0.46
22.1
3475
235399.3
0.83 207
54.3
PQ12B7
17000339A
3 Leadwires
12
9-14
2.26
27.1
3400
235399.3
0.83 207
54.3
PQD12B3E2X-E3
17001190A
4 Leadwires
12
8-16
2.26
27.1
3400
235399.3
0.83 207
54.3
PQD24B3E2X-E3
17001191A
4 Leadwires
24
16 - 32
1.00
24.0
3400
235399.3
0.83 207
54.3
PQD48B3E2X-E3
17001192A
4 Leadwires
48
36-60
0.46
22.1
3400
235399.3
0.83 207
54.3
PQD24K3E2X-E3
17001193A
4 Leadwires
24
16 - 32
1.80
1.8
4200
285484.2
1.08 269
58.9
PQD48K3E2X-E3
17001194A
4 Leadwires
48
36-60
0.90
43.2
4200
285484.2
1.08 269
58.9
PQD24Z3E2X-E3
17001195A
4 Leadwires
24
16 - 32
1.30
31.2
4500
305518.2
1.37 341
60.4
PQD48Z3E2X-E3
17001196A
4 Leadwires
48
36-60
0.67
32.2
4500
305518.2
1.37 341
60.4
PQD24U3E2X-E3
17001197A
4 Leadwires
24
16 - 32
1.70
40.8
4830
332564.1
1.70 423
64.0
PQD48U3EX2-E3
17001198A
4 Leadwires
48
36-60
0.85
40.8
4830
332564.1
1.70 423
64.0
PQD12B3-E3
17001204A
2 Leadwires
12
8-16
2.26
27.1
3400
235399.3
0.83 207
54.3
PQD24B3-E3
17001205A
2 Leadwires
24
16 - 32
1.00
24.0
3400
235399.3
0.83 207
54.3
PQD48B3-E3
17001206A
2 Leadwires
48
36-60
0.46
22.1
3400
235399.3
0.83 207
54.3
PQ12B4
19031083A
2 Leadwires
12
6 - 14
2.26
27.1
3400
235399.3
0.83 207
54.3
PQ24B4
19031084A
2 Leadwires
24
12 - 28
1.00
24.0
3400
235399.3
0.83 207
54.3
PQ48B4
19031085A
2 Leadwires
48
24 - 56
0.46
22.1
3400
235399.3
0.83 207
54.3
PQ12C4
19031086A
2 Terminals
12
6 - 14
1.26
15.1
2800
194334.8
0.56140
50.1
PQ48C4
19031088A
2 Terminals
48
24-56
0.38
19.0
3125
210356.8
0.65 162
49.8
PQ48S3HBDLX
19031122A
5 Leadwires
48
24-56
0.46
24.0
3500
235399.3
0.83 207
51.2
PQ48B7
19031235A
3 Leadwires
48
24-56
0.50
22.1
3400
235399.3
0.83 207
54.3
PQ24B7
19031263A
3 Leadwires
24
12 - 28
1.00
24.0
3400
235399.3
0.83 207
54.3
PQ24S4H
19031397A
2 Terminals
24
12 - 28
1.00
24.0
3425
235399.3
0.83 207
51.2
PQ24B7-E2
19039032A
3 Leadwires
24
12 - 28
1.00
24.0
3400
235399.3
0.83 207
51.2
PQ24S4HX
19039299A
2 Terminals
24
12 - 28
1.00
24.0
3400
235399.3
0.83 207
54.3
PQ12B4QNN
19039355A
2 Terminals and 3 Leadwires
12
9 - 14
2.26
27.1
3400
235399.3
0.83 207
54.3
PQD24Z3A2
19039695A
4 Leadwires with programmable harness
24
12 - 32
1.45
35.0
4500
305518.2
1.37 341
60.4
PQD48Z3A2
19039696A
4 Leadwires with programmable harness
48
24-72
0.72
35.0
4450
305518.2
1.37 341
60.2
PQ48R0X
19039729A
Harness
48
24-56
0.46
22.0
3400
235399.3
0.83 207
51.2
PQD24U3E
19040425A
3 Leadwires
24
16 - 32
1.70
40.8
4830
332564.1
1.70 423
64.0
PQD24U3E2
19040427A
4 Leadwires
24
16 - 32
1.70
40.8
4830
332564.1
1.70 423
64.0
PQD48U3E
19040428A
3 Leadwires
48
28 - 72
0.85
40.8
4830
332564.1
1.70 423
64.0
Designed with optional feature
Speed control:Linear voltage,PWM,Thermal sensor
Feedback:Tach,FPS
Environmental Protection:E2(IP55) E3(IP68)
See All Series
Compare Now

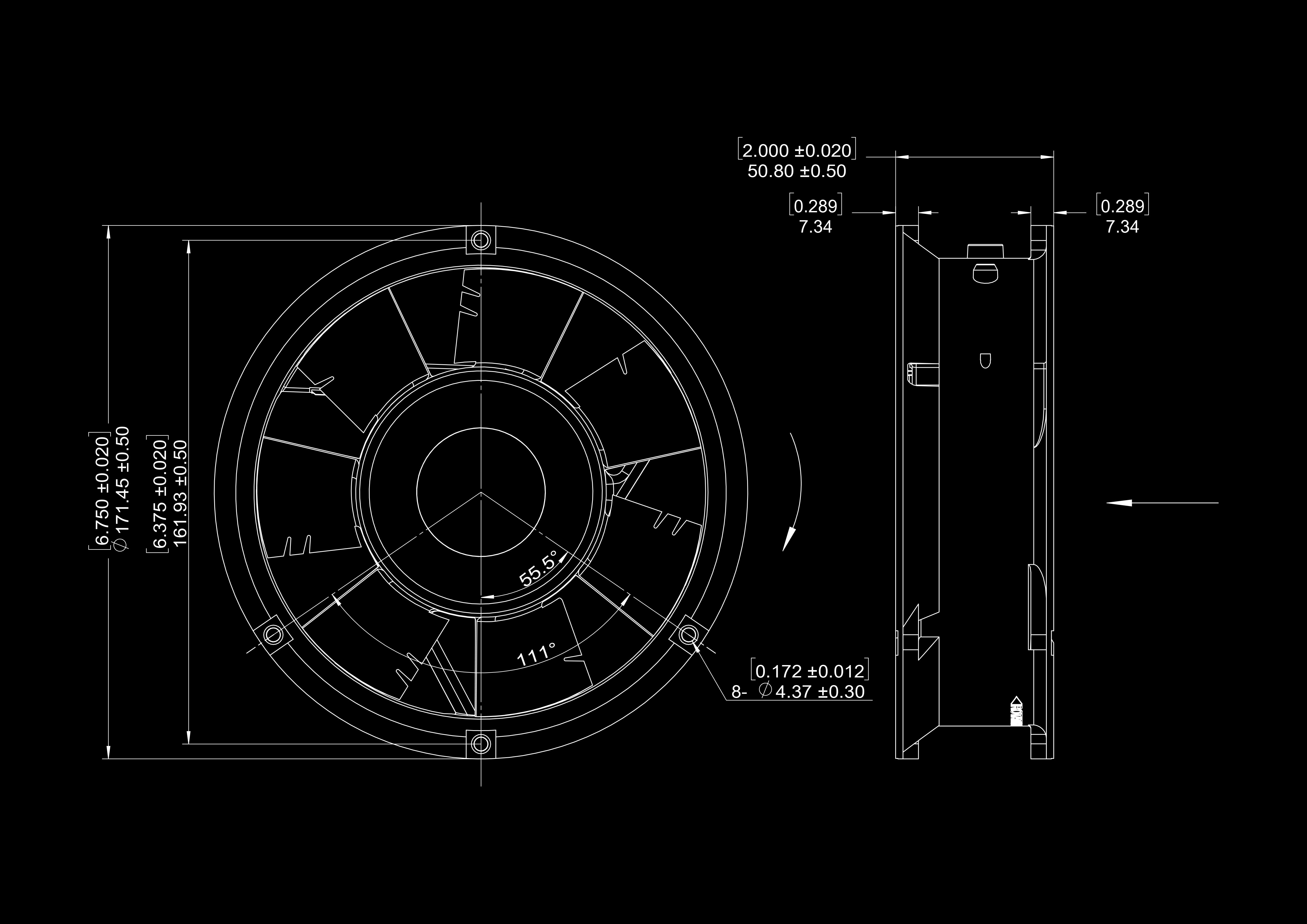

MECHANICAL DRAWING

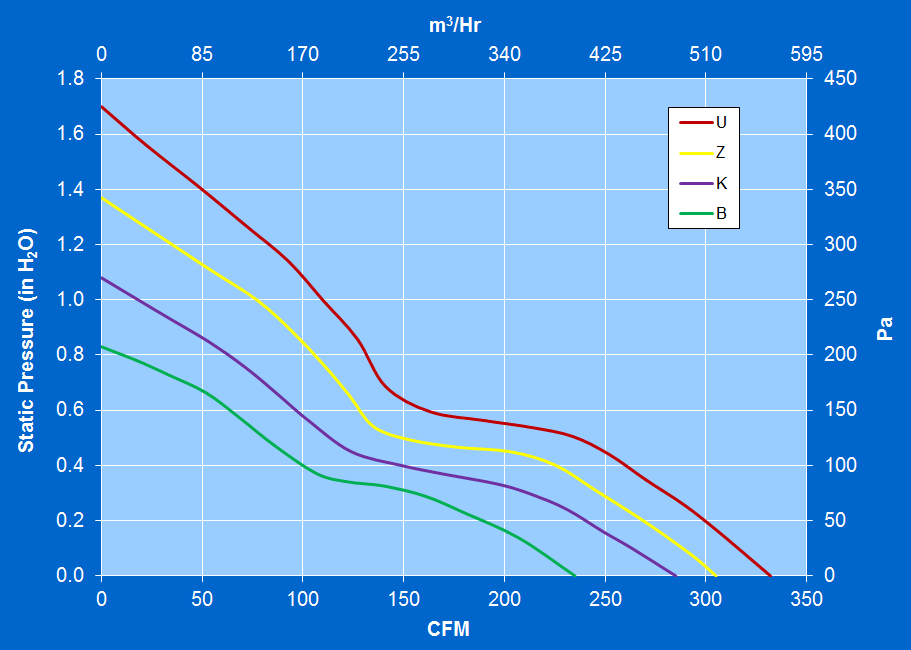

PQ CURVE
